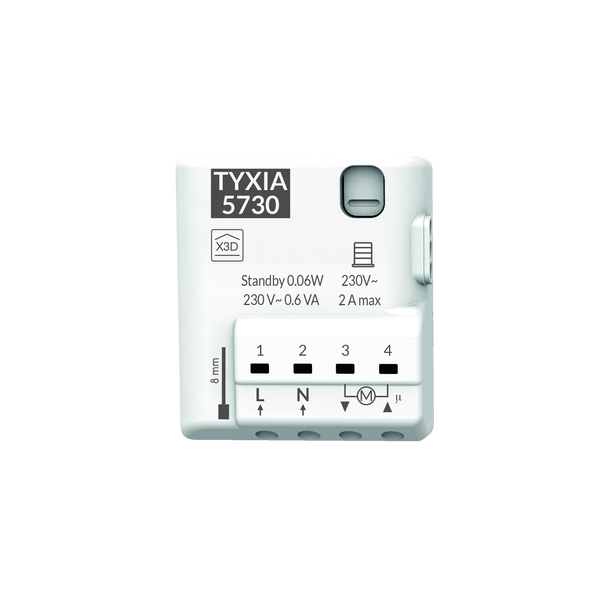

Tyxia 5730


Wireless 230V receiver for roller shutter motor up to 2A

The benefits of using Tyxia 5730 :

  • 2 favourite roller shutter positions can be saved
  • Feedback of the position of the roller shutter via a control panel or remotely
  • Optimising the building’s energy effi ciency as no work is required for installation
  • Very low energy consumption

Reference Name
6351402 Tyxia 5730
  • Controls a roller shutter from one or more wireless mobile or fixed transmitters
  • Controls either: a roller shutter motor, an awning, a motorised blackout blind, a home cinema projector screen or 12 V or 24 V motorised skylights (with 2 change-over current relays)
  • Local control from a raise/stop/lower switch or from a raise/lower double push button
  • Associated with a wireless smoke detector (DFR TYXAL+) for an automatic opening of blinds in the case of smoke
Guarantee 5 years
Power supply type Main supply
Power supply 230V
Place of use Indoor
Wireless range 100 to 300 m
Operating temperature -10 to 40 °C
Dimensions H 41 x L 36 x P 15 mm

No additional product required for the correct functioning of Tyxia 5730
