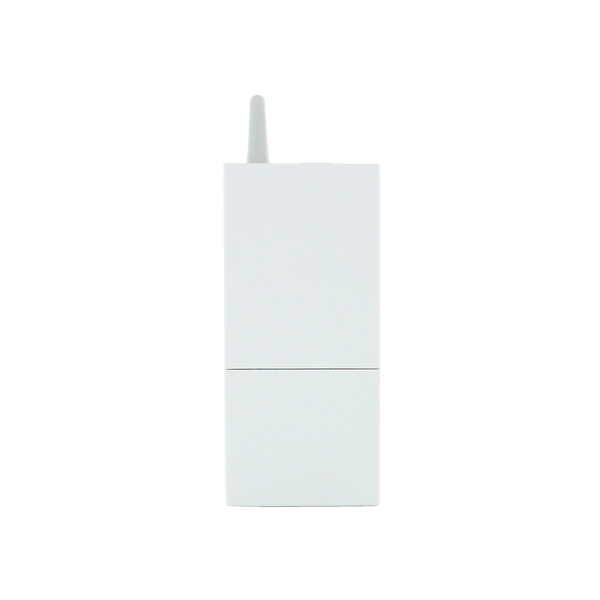

RF 6630

Wireless receiver for electric radiator with terminal output

The benefits of using RF 6630 :

  • Intuitive remote control and programming using the TYDOM application

Reference Name
6050640 RF 6630
Functions
  • For control of an electric radiator via a thermostat
  • Proportional Integral or On/Off control with a Minor 1000
  • Also compatible with Tybox 5101 if the aim is to standardise the control solution for ease of use
  • Automatic frost protection if a window is open (sensor sold separately)
  • The electric underfloor heating solution is compatible with the tydom hubs, which enables;
  • Programming & remote management of the system
  • Anticipation/Optimisation of the heating start-up, for greater comfort and savings
  • Can be controlled by voice with a compatible voice assistant
  • 16A terminal block powered output
Guarantee 5 years
Power supply type Main supply
Power supply 230V
Place of use Indoor
Wireless range 100 m
Control PI, On off
Operating temperature 0 to 40 °C
Dimensions H 120 x L 54 x P 25 mm
Minor 1000
Reference: 6151058 		Wireless room thermostat for electric radiators - Single transmitter
STI 2000
Reference: 6300051 		Indoor temperature sensor
Tybox 5101 BK
Reference: 6300052 		Wireless multi-zone thermostat
Tybox 5101 white
Reference: 6300045 		Wireless multi-zone thermostat
