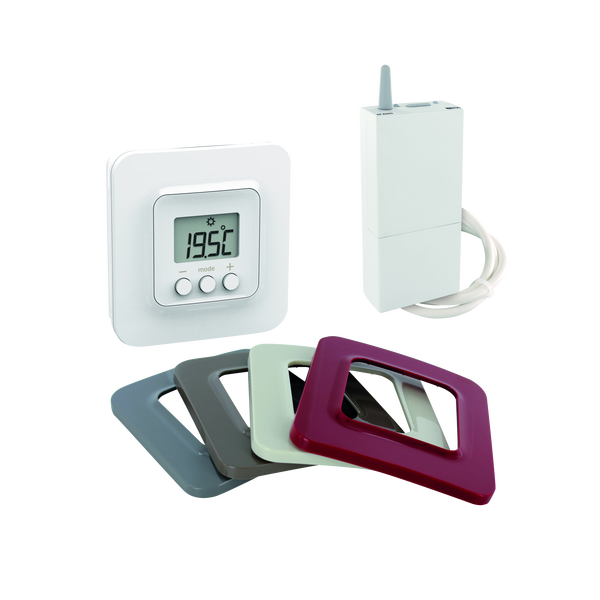

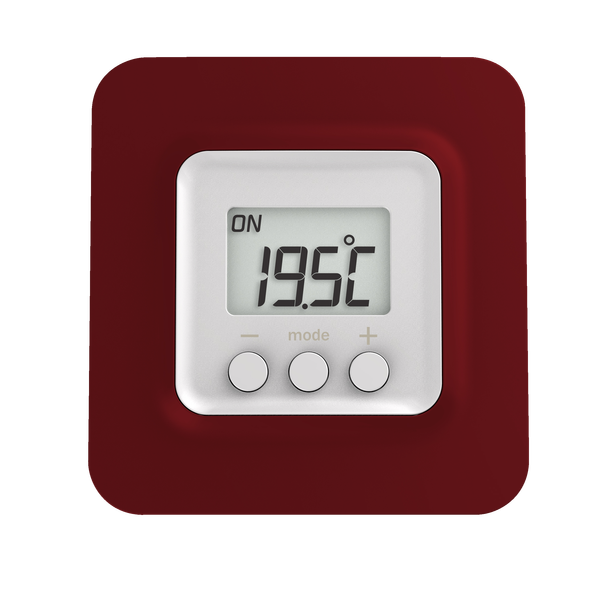

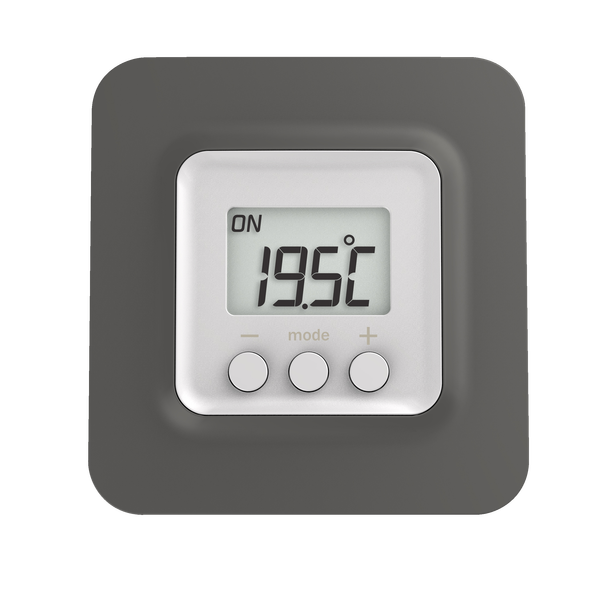

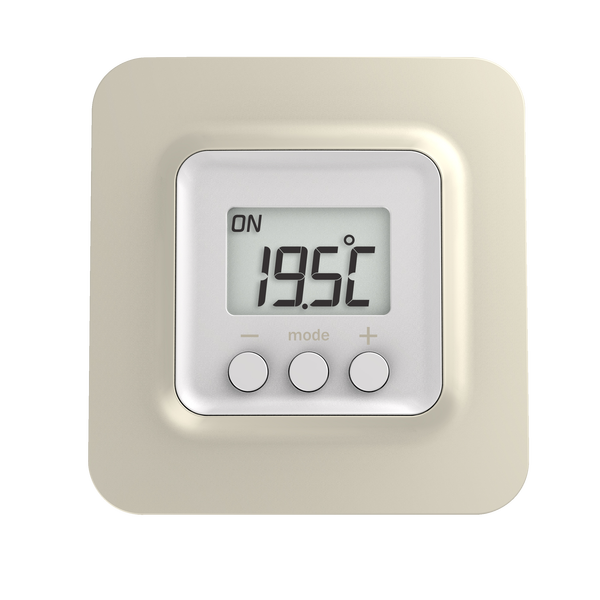

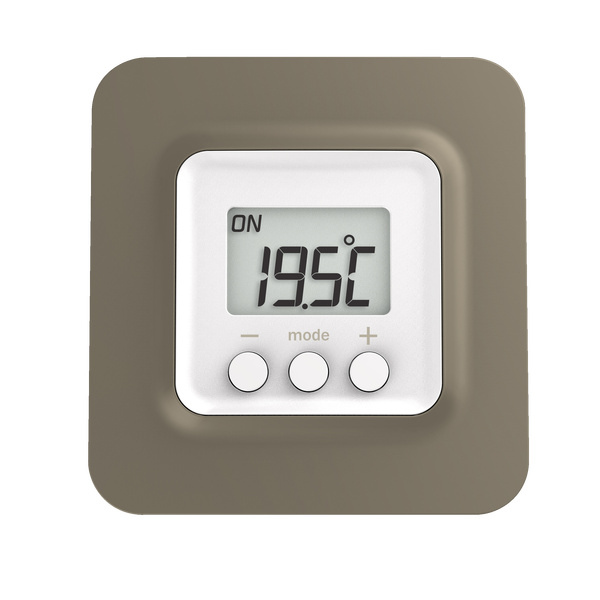

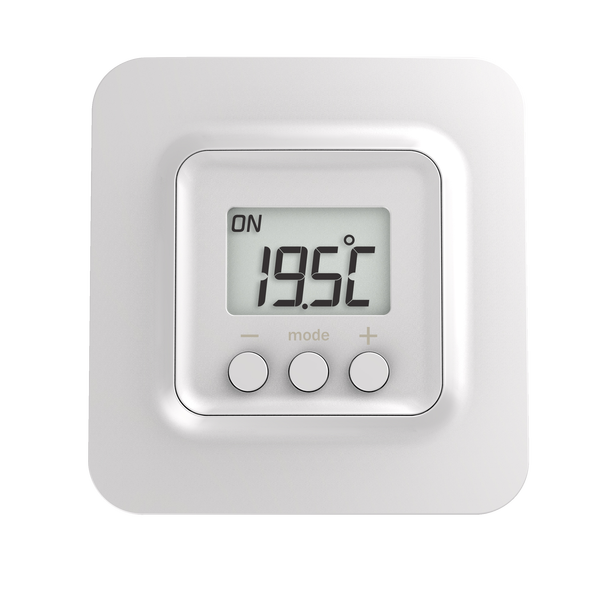

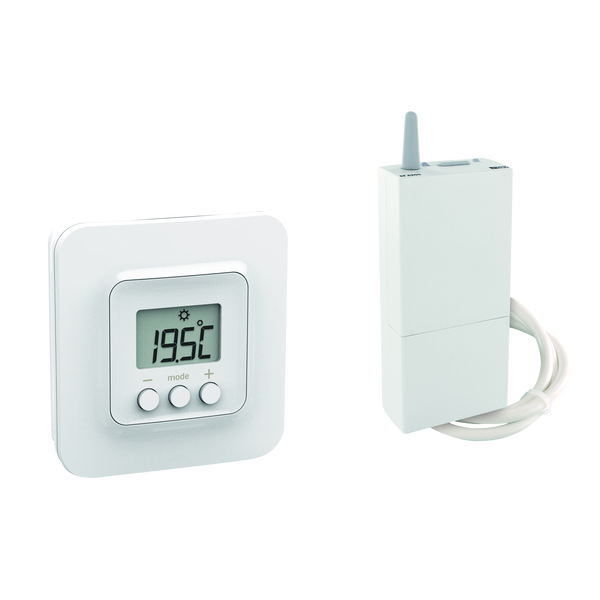

Tybox 5100

Wireless thermostat for heating zones

Wireless thermostat for heating zones

The benefits of using Tybox 5100 :

Feedback providing remote information of room temperature in the home
Small size for discreet installation
Ability to control and program your heating and other uses (openings, alarm, etc.) from your tablet or smartphone using TYDOM 1.0

Reference	Name
6050608	Tybox 5100

Functions

Zone thermostat
If alone, Controls either the boiler, the non reversible heat pump, the zone valve with electrothermic head or the circulator
If associated (TYDOM 1.0, 2.0, 3.0, TYDOM 4000, TYBOX 2000, TYBOX 2020 WT and CALYBOX 2020 WT) can control in hot or cold mode
PID controller
Indication of the room temperature
Setting override by zone

Guarantee	5 years
Receiver RF 6000 \| Quantity : 1
Power supply type	Main supply
Power supply	230V
Place of use	Indoor
Wireless range	100 to 300 m
Operating temperature	-10 to 40 °C
Dimensions	H 140 x L 54 x P 25 mm
Transmitter Tybox 5101 \| Quantity : 1
Power supply type	Battery
Batteries supplied	2 Alkaline LR03
Place of use	Indoor
Wireless range	100 to 300 m
Operating temperature	-10 to 40 °C
Dimensions	H 84 x L 80 x P 21 mm

No additional product required for the correct functioning of Tybox 5100
