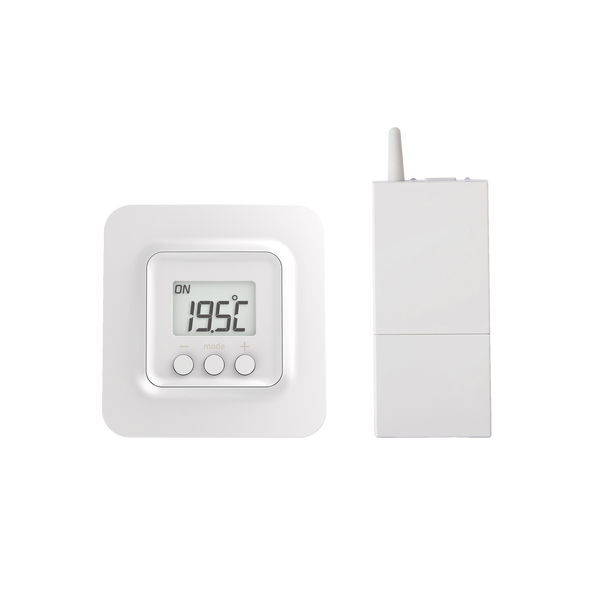

Tybox 5200
Wireless thermostat for multi-zone heating installation (230V only)
Wireless thermostat for multi-zone heating installation (230V only)
The benefits of using Tybox 5200 :
- Feedback allowing remote identification of the room temperature in the home
- Ability to control and program your heating and the other uses (openings, lighting, etc.) from your table or smartphone through TYDOM 1.0 or 2.0 (option)
| Reference | Name |
| 6050634 | Tybox 5200 |
Functions
- Zone thermostat
- If alone, Controls either the boiler, the non reversible heat pump, the zone valve with electrothermic head or the circulator
- If associated (TYDOM 1.0, 2.0, 3.0, TYDOM 4000, TYBOX 2000, TYBOX 2020 WT and CALYBOX 2020 WT) can control in hot or cold mode
- PWM controller
- Indication of the room temperature
- Setting override by zone
| Guarantee | 5 years |
| Transmitter Tybox 5101 | Quantity : 1 | |
| Power supply type | Battery |
| Batteries supplied | 2 Alkaline LR03 |
| Place of use | Indoor |
| Wireless range | 100 to 300 m |
| Operating temperature | -10 to 40 °C |
| Dimensions | H 84 x L 80 x P 21 mm |
| Receiver RF 6050 | Quantity : 1 | |
| Power supply type | Main supply |
| Power supply | 230V |
| Place of use | Indoor |
| Wireless range | 100 to 300 m |
| Operating temperature | -10 to 40 °C |
| Dimensions | H 140 x L 54 x P 25 mm |
