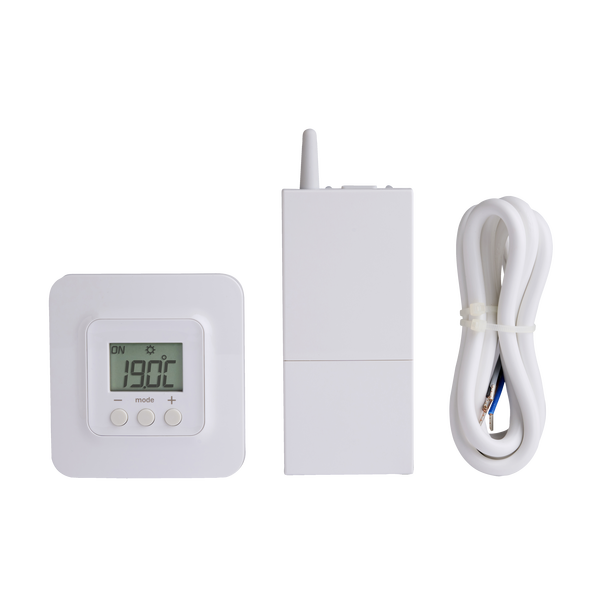

Tybox 5300

This product replaces the Tybox 5200


Wireless room thermostat for reversible/non-reversible system, mono/multi-zone

The benefits of using Tybox 5300 :

  • Choose the best position for the product: optimal temperature measurement ensuring comfort and economy
  • Easily switch to reversible mode and adjust the temperature of the thermostat
  • Control and programme remotely via the application or using a voice assistance, thanks to the smart hub

Reference Name
6053082 Tybox 5300
  • Control of a boiler, wood-burning stove, reversible and non-reversible heat pump, valve, circulator, zone valve, or motorised damper (ductable system)
  • Zone room temperature display
  • Control of 3 operating modes: Heat, Cooling, Off
  • Proportional Integral Derivative (PID, adjustable time base) or On/Off (TOR) control
  • Button-locking function (e.g. child's room, shared office…)
  • Automatic management of lowering of temperature upon detection of an open window (equipped with a window magnetic contact)
  • Solution compatible with the Delta Dore smart home hub, for the programming and remote management of the system
  • Anticipation of heating start-up with the smart home hub, for increased comfort and savings
Guarantee 5 years
Transmitter Tybox 5101 | Quantity : 1
Power supply type Battery
Batteries supplied 2 Alkaline LR03
Place of use Indoor
Wireless range 100 to 300 m
Operating temperature -10 to 40 °C
Dimensions H 84 x L 80 x P 21 mm
RF 6050+ receiver | Quantity : 1
Power supply type Main supply
Power supply 230V
Place of use Indoor
Wireless range Up to 300 m in open space
Dimensions H 140 x L 54 x P 25 mm

No additional product required for the correct functioning of Tybox 5300
