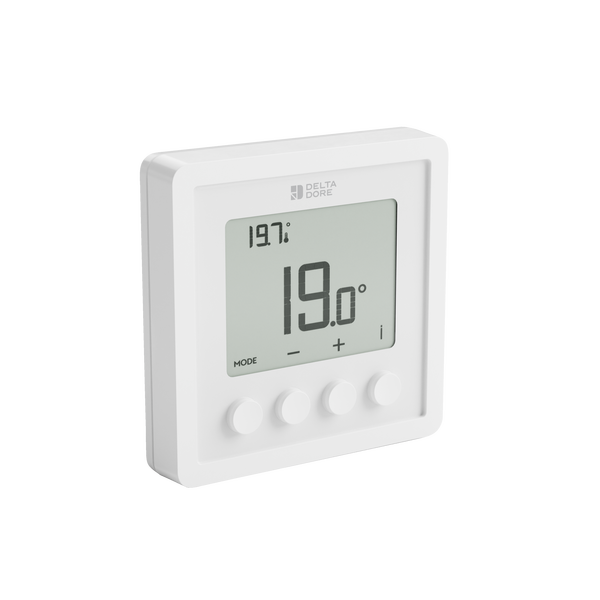

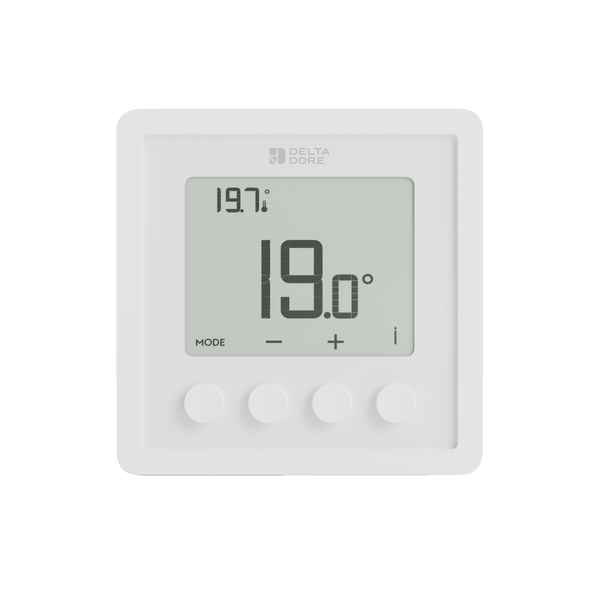

Tybox RF 210

This product replaces the Tybox 2300 and Tybox 5101 white and Tybox 5300

Wireless thermostat for hydraulic and aeraulic systems

Make energy savings without compromising on your comfort
Use a simple thermostat that can be customised to your needs
Control and programme from the app or via voice assistant using the smart home hub

Reference	Name
6051149	Tybox RF 210

Functions

Control of a boiler, wood-burning stove, reversible or non-reversible heat pump, zone valve or motorised damper (ductable system)
Display of temperatures, humidity level
Configurable control: Proportional Integral Derivative control (PID, adjustable reference time) or All or Nothing (TOR, with adjustable hysteresis)
Advanced settings for the screen display, the management of access to functions, min-max temperature
Open window detection by means of the addition of a detector
When associated with a smart home hub, improved control from the app, with centralised management, voice assistant compatibility, management of routines and smart optimised start when starting up the heating
Management of 4 modes: Heating, Cooling, Off, Absence
Wireless measurement tool to assist with installation
Access to the digital instructions via a QR code accessible on the screen
Wireless control of zone or room in a multi-zone installation, in possible combination with a generator control receiver (RF 6420 or RF 6450)
Multi-receiver wireless control in the same thermal zone

Guarantee	5 years
Tybox Control \| Quantity : 1
Power supply type	Battery
Batteries supplied	2 Alkaline LR03
Battery life	2-year battery life based on the following usage scenario: - 5 actions per day on the thermostat, - 25 thermostat settings changes per year
Place of use	Indoor
Wireless range	Up to 300 m in open space
Operating temperature	0 to 55 °C
Dimensions	H 92 x L 92 x P 21 mm

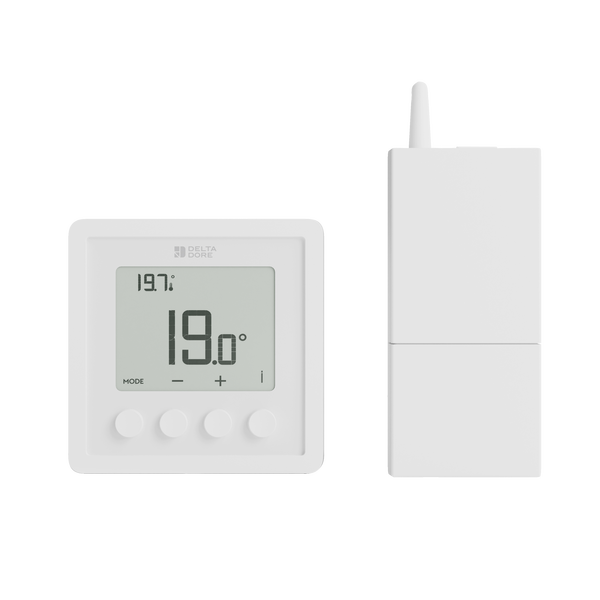

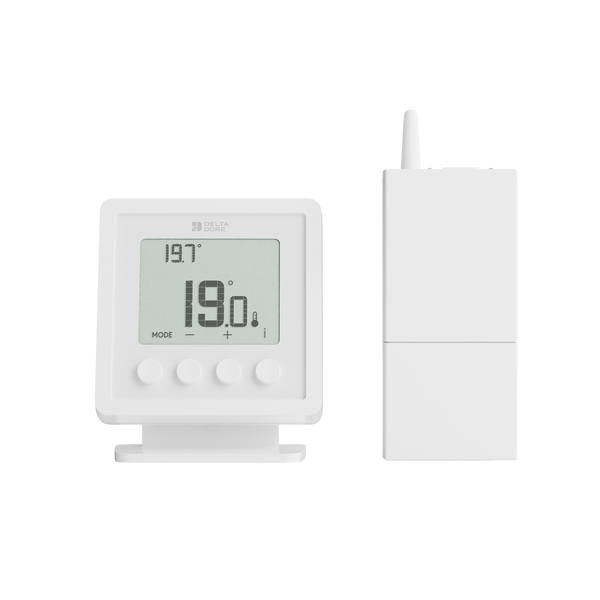

RF 7210 \| Quantity : 1
Power supply type	Main supply
Place of use	Indoor
Wireless range	Up to 300 m in open space
Operating temperature	-10 to 60 °C
Dimensions	H 140 x L 54 x P 25 mm
