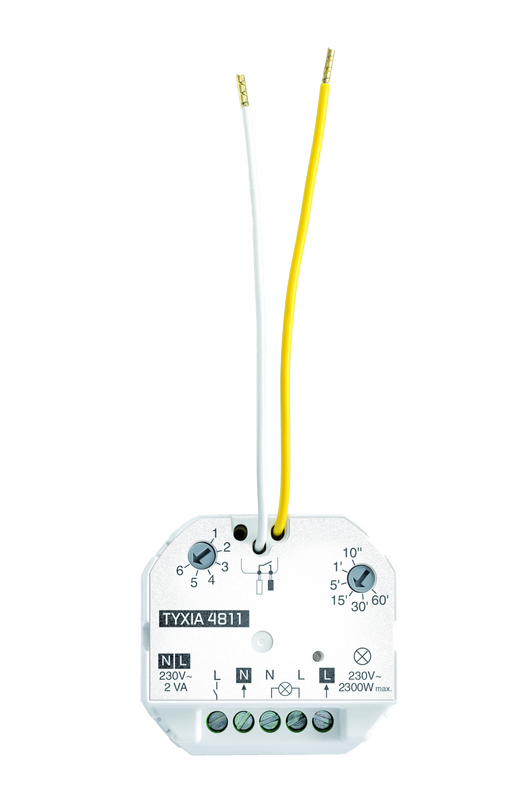

Tyxia 4811

Wireless 10A on/off lighting receiver + timer

The benefits of using Tyxia 4811 :

  • Suitable for public buildings, thanks to the various functions
  • Warns users that the light is about to go out in a room, passageway, staircase, etc.
  • Recommended for controlling an air vent in the toilet or bathroom, when lasting presence is detected

Reference Name
6351107 Tyxia 4811
Functions
  • Controls a lighting system in On/Off mode from one or several wireless mobile or stationary transmitters
  • Possibility of adjusting the lighting operation time: from 10 seconds to 1 hour
  • Lighting off warning function: flashes once, then a second time to warn that the light is about to go out
  • Specific timer with presence detection over 80 seconds to control an extractor fan
  • Controls an extractor fan, a fan (control of a motor if <2A)
Guarantee 5 years
Power supply type Main supply
Power supply 230V
Place of use Indoor
Wireless range 100 m
Operating temperature -10 to 40 °C
Dimensions H 50 x L 47 x P 33 mm

No additional product required for the correct functioning of Tyxia 4811
