These new Tyxia transmitters will allow you to offer a control solution that is compatible with the entire Tymoov range, the Tyxia 5630 and 5730 micromodule receivers.



Seamless changeover

These transmitters are changing their names and model numbers, but their designs will remain the same.

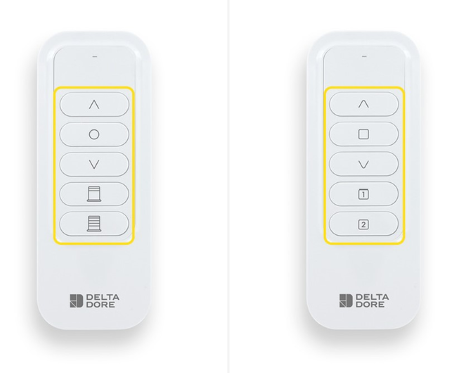

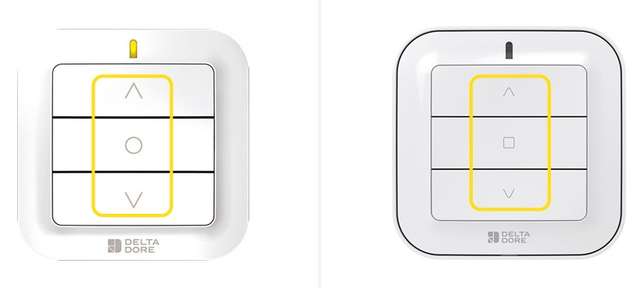

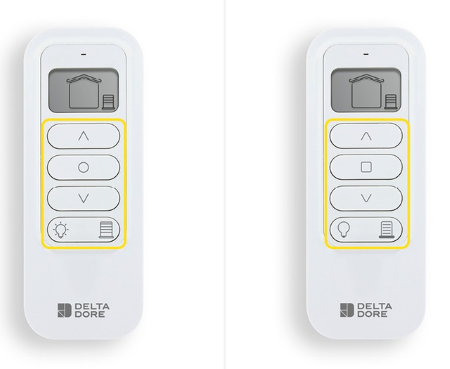

The only physical modification will concern the buttons, so as to successfully differentiate these transmitters from the previous models:

The Stop button will change from round to square

The corners of the raise and lower symbols have been rounded off

The favourite position buttons are identified with the numbers 1 and 2



Enhanced functions

Using the best of technology enables an increase in performance in the new Tyxia transmitters:

-          3 unique products to control 230 V and 12 V DC technologies, within a single environment.

-          The Tyxia 2331 wall-mounted controller is now natively bi-directional

-          The existing ergonomics have been retained to facilitate handling

-          100% compatibility with existing products

-          "Silence" function optimised for Tymoov RP2: a long press for 3 seconds triggers silence mode, with an automatic return to the nominal speed



Affected products:

These remote controls and wall-mounted radio controllers shall replace the previous existing products:

The Tyxia 2330 1-channel wall-mounted controller (ref. 6351379) will become the Tyxia 2331 (ref. 6351440)

The Tyxia 1703 1-channel remote control (ref. 6351404) will become the Tyxia 1701 (ref. 6351441)

The Tyxia 1712 group remote control (ref. 6351406) will become the Tyxia 1716 (ref. 6351442)

To facilitate visual identification, a label indicating that the products are "NEW" will be applied to the packaging for the next 4 months.



Updated packs

Remote controls 1703 and 1712 that are found in packs will be replaced with new remote controls.

Affected packs, with no change in product reference:

Tyxia 541 Pack – Roller shutter control pack - ref. 6351409

Tyxia 642 Pack - Roller shutter control smart pack - ref. 6351437



Affected packs, with change in product reference:

Tymoov 2 10 Pack – 10 Nm roller shutter motor pack – ref. 6357020

Replaced by:

Tymoov2 10 Silence Pack + 10 Nm roller shutter motor pack – ref. 6357059



Tymoov 2 20 Pack – 20 Nm roller shutter motor pack – ref. 6357023

Replaced by:

Tymoov2 20 Silence Pack + 20 Nm roller shutter motor pack – ref. 6357060
