SIMPLE

ONE SOLUTION FOR ALL YOUR INSTALLATIONS

We have combined all the best developments into 3 products, all Tydom compatible, with a view to responding to all of your installation requests, both today and tomorrow.

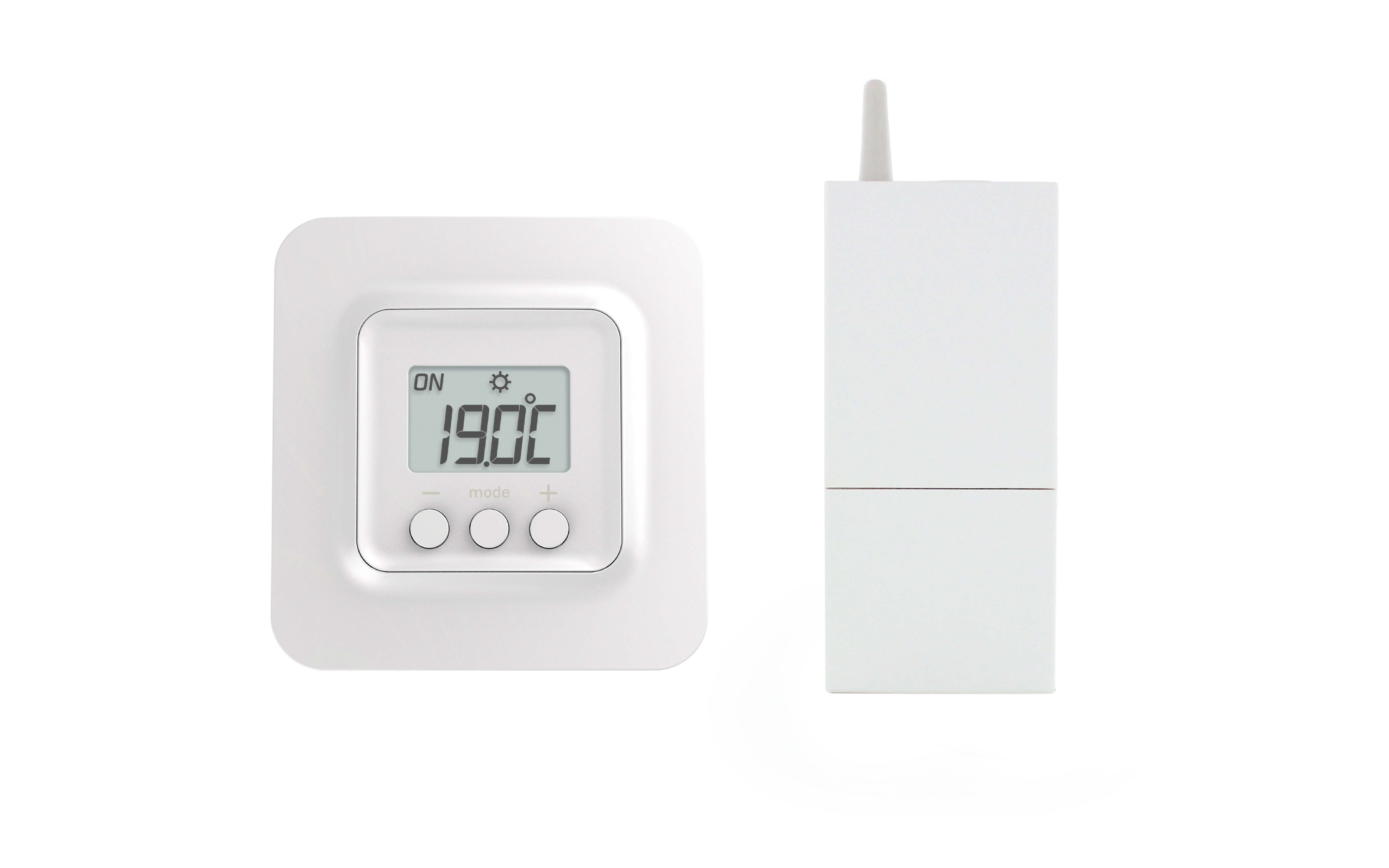

TYBOX 5300 THERMOSTAT

Replaces the Tybox 53 or Tybox 5100/5200

Wireless thermostat for controlling heating and/or air conditioning, and single zone and multizone management. Available as a smart pack

Good to know: supplied in hot/cold mode by default, the Tybox 5300 can also be used in hot mode only, depending on its configuration.

The transmitter and receiver are paired in the factory

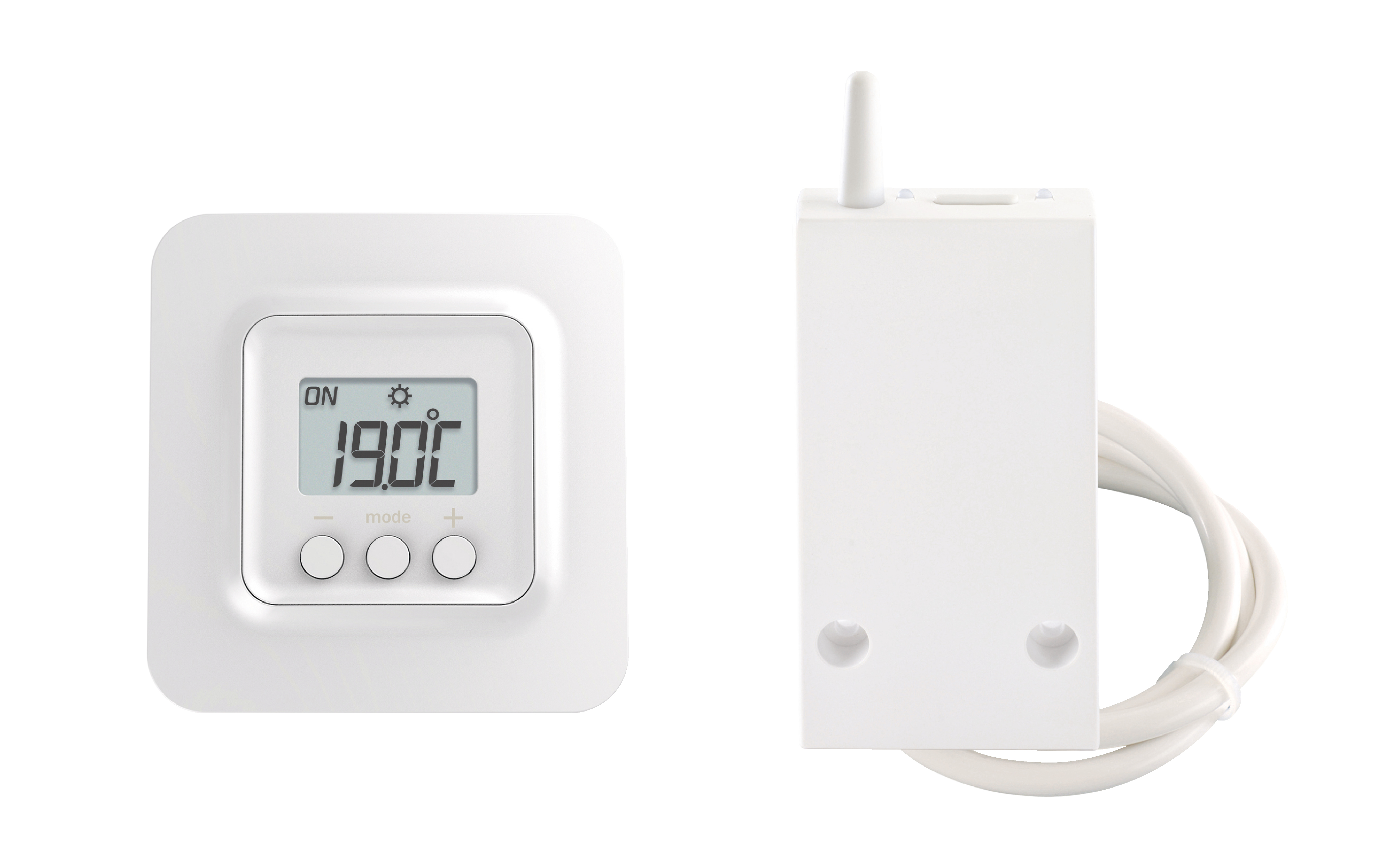

TYBOX 2300 THERMOSTAT

Replaces the Tybox 23 or Tybox 5100/5200

Wireless thermostat for controlling heating only, for single zone and multizone management.

Good to know: supplied with a cabled receiver

The transmitter and receiver are paired in the factory.

The Tybox 2300 is also available as a smart pack (ref. 6050681).

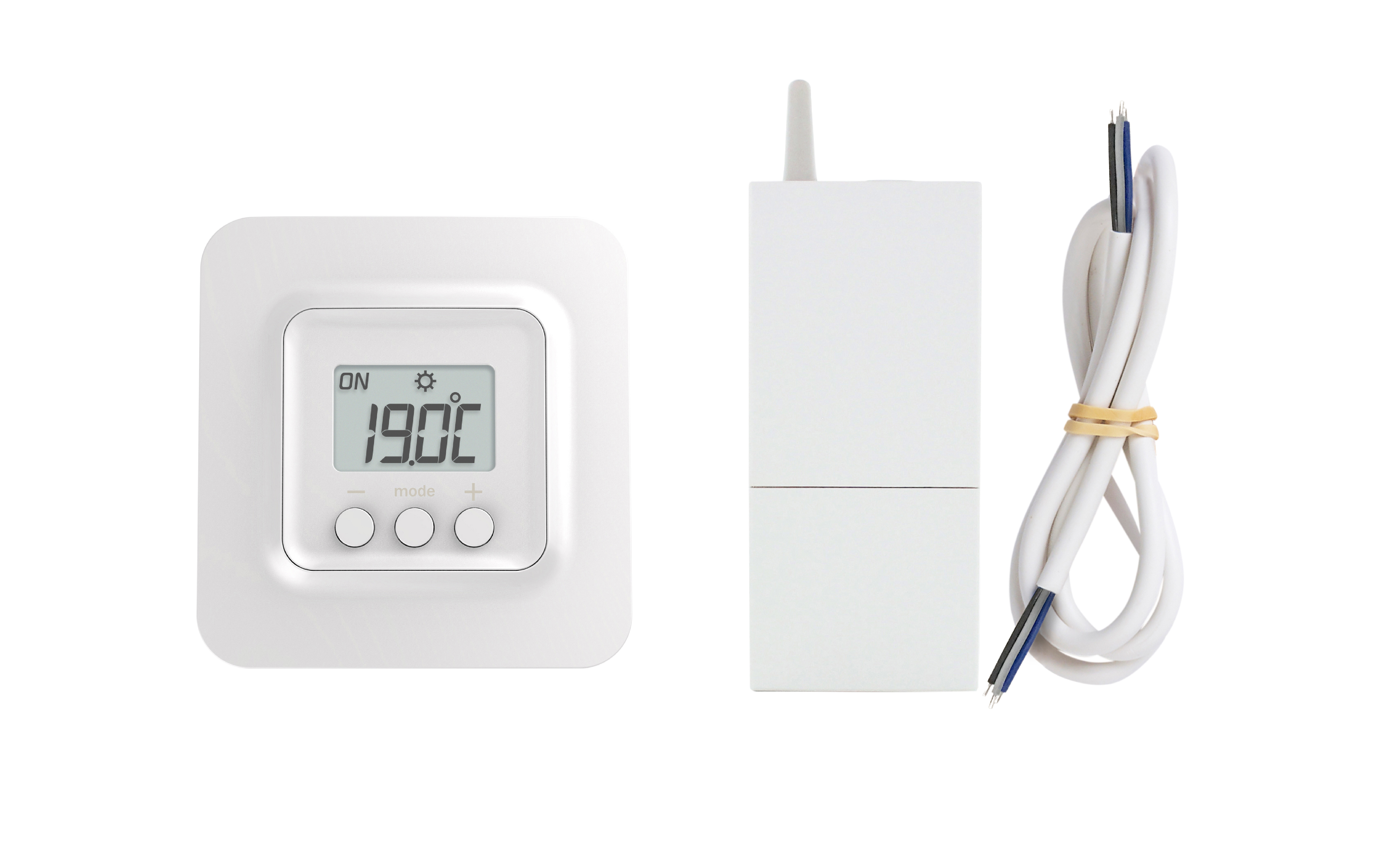

Tybox thermostat 5150

Wireless thermostat for controlling heating and/or air conditioning, and single zone management only.

Good to know: the receiver has a change-over output to automatically switch the heat pump depending on the selected mode (heating/air con).

GOOD TO KNOW REGARDING THE TYBOX 5300 AND 2300:

• In case of multiple receivers: you have the ability to control several valves or dampers from the same thermostat, by adding one or more RF6050+ receivers to the installation (ref. 6050679)
• Your customer wants a room thermostat in anthracite grey? Build your thermostat (equivalent to the Tybox 5300) with the Tybox 5101 room thermostat (ref. 6300052) and the RF6050+ receiver (ref. 6050679)
• You can round off your customer's installation by adding:
  • An RF6450 receiver (Ref. 6050568) to the Tybox 5300, to control the generator* (On//Off) and change-over.
  • An RF6420 receiver (Ref. 6050567) to the Tybox 2300 to control the generator* (On/Off)

*Depending on usage conditions

CHANGES AT A GLANCE

Are you installing the Tybox 5100 or Tybox 5200 for heating and air conditioning?

Tomorrow, depending on your installation setup, look to the Tybox 5300 to control your heating and air conditioning, or to the Tybox 2300 to control your heating only.

POWERFUL

A SINGLE ROOM THERMOSTAT THAT ADAPTS TO ANY CONFIGURATION

The Tybox transmitter adapts its display and the available commands to suit the type of use, depending on the receiver to which it is paired. This makes it possible to have a single transmitter for different uses: control of reversible and non-reversible systems.

Is your customer's home evolving? Thanks to the unique transmitter, the thermostat need not change! You can design their installation however they want

Your customer has an old oil-fired boiler that they want to change for a wood-burner? They can keep their thermostat.

Practical! Does your customer already own a hybrid heating installation? They can retain the aesthetics for all of the thermostats in their home, thanks to the Tybox multi-energy room thermostat. One Tybox will, for example, control the electrical underfloor heating in the bathroom, while another will control the wood-burning stove in the lounge.

SWITCH FROM HEATING TO COOLING FROM THE THERMOSTAT

Switching from heating to cooling mode is now possible directly from the room thermostat (Tybox 5150 and Tybox 5300).

MULTIPLE CONFIGURATIONS ADAPTED DEPENDING ON USE

You have the ability to fine-tune the settings to offer your customers increased comfort, to enable increased energy savings and to maintain their installation.

• Personalisable configuration of the frost protection setting from 5 to 16°C
• Selection of the receiver relay opening direction (for Tybox 2300), RTC relay on Tybox 5300
• Selection of the thermal configuration of the generator  (heating only or heating/air con) (for Tybox 5300)
• Proportional Integral Derivative (PID with time base adjustable from 15 to 60 minutes) or On/Off (TOR) control with adjustable hysteresis.
• Activation/Deactivation of the anti-seizing function
• Buttons can be locked
• Automatic temperature correction after the setting of the temperature sensor.
• Backlighting can be disabled

SCALABLE

TYDOM-COMPATIBLE

With the app and the Tydom smart home hub, your customers can control and programme their heating, whenever they want, wherever they want, and whether using their voices or via routines. Position the product wherever you want: the optimal temperature measurement ensures comfort and economy. There are so many ways to simplify their daily lives.

ENERGY SAVINGS MADE EASY

Do your customers want to make easy energy savings? Suggest that they add a window/door magnetic contact to their range of equipment. Connected to the Tybox thermostat, their heating will automatically set to frost protection mode when the window is opened.

The "anticipation & optimisation" function also allows you to automatically adapt the temperature variations via the Tydom app, on all Delta Dore thermostats. The anticipation & optimisation function allows you to adapt the heating temperature at the opportune time, resulting in energy savings.
